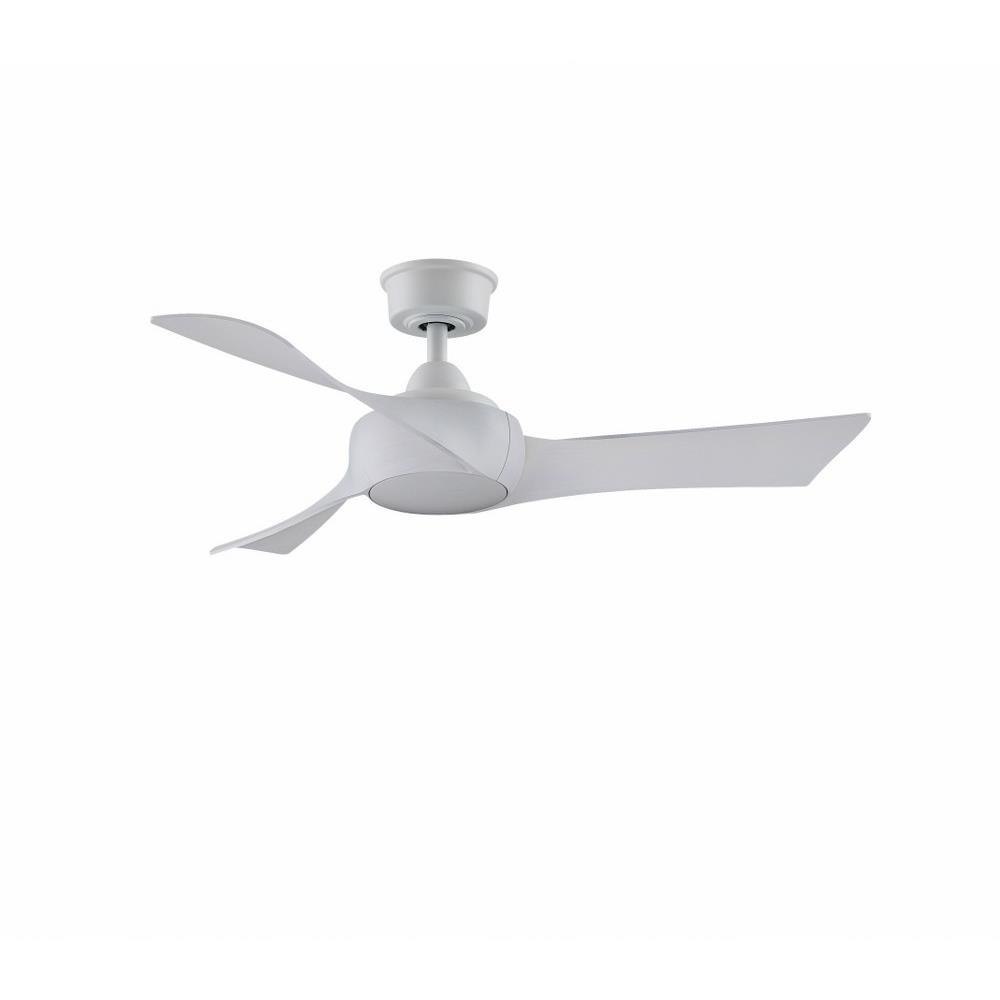

Wrap Custom Motor - BS (MAD8530BS) by Fanimation
Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Specification
Item #
MAD8530BS
Dimensions
Height: 12.46"
Width: 44.00"
Length: 44.00"
Additional product details
Vendor Item #
MAD8530BS
Internal #
7153P
Category
Fans
Subcategory
Ceiling Fans
Finish
Black , Brass
Option
Energy Star , Damp Rated
Voltage
10-99
Number of Blades
3 Blades
Wattage
8w
Category
Fan-Multi
Finish
Brushed Satin Brass
Option
Damp Rated
Family
Wrap Custom
Voltage
120V
Air Flow CFM
7141
Air Flow Efficiency
200
Blade Pitch
Varied
Harmonized Codes
8414.51.3000
Length
44, 48, 52, 56, 60
Light Kit Included
No
Max Width
60
Motor Size
158 x 22
Motor Type
DC
Ship Carton Height
7.6
Ship Carton Length
16.34
Ship Carton Width
8.86
Ship Weight
14.99
Sold By
Each
Warranty
Limited Lifetime
Weight
12.13
Airflow Efficiency Low
404
Airflow Efficiency Medium
552
Avg Airflow Efficiency
211
Avg CFM Energy
5114
Avg Energy Use Watts
24
Avg Estimated Yearly Energy Cost
7
Avg Estimated Yearly Energy Cost on HIGH
10
Canopy Diameter
6.14
Canopy Height
2.55
Cap Included
Yes
Carton Cubic Feet
0.64
Case Quantity
1
Case Weight Pounds
14.99
CEC Uploaded
Yes
Ceiling To Blade Edge
11.83
Ceiling To Bottom
12.46 , 13.05
CFM Low
728
CFM Medium
4359
Compatible Accessories
DR1-12BS, DR1-18BS, DR1-24BS, DR1-36BS, DR1-48BS, DR1-60BS, DR1-72BS, DR1-CPBS, SCB1-52
Compatible Light Kits
LK8530BS
Compatible Wall Controls
TW306
Country of Origin
China
Current Draw High
0.49
Current Draw Low
0.04
Current Draw Medium
0.13
Damp Rated
Yes
DOE Classification
LSSD
DOEFTC Uploaded
Yes
Downrod Length
4.5
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Housing Diameter
8.88
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Max Ceiling Slope
27
Max Watt
36
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
138
RPM Low (II)
29
RPM Medium (IV)
88
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60HZ
Watts Low
2
Watts Medium
8
Manufactured By
Fanimation


Other Details:
  • 377
  • 7141 CFM on High
  • Compatible with smart home devices using the Wi-Fi fanSync app
  • DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and safe exit features
  • Energy Star Most Efficient 2022
  • Set of (3) Damp Rated blades with multiple finish options available and 18 watt LED CCT Select light kit available (sold separately). Compatible with Wrap Custom blade sets with sweeps between 44 and 60 inches
  • TR305 handheld remote with 23A battery included
Ceiling To Bottom
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
731
00
/ / 1
($731.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability status is unavailable.
