10 inch; LED Disk Light; 5-CCT Selectable 27K/3K/35K/4K/5K; Bronze Finish (62/1813)
by Nuvo
10 inch; LED Disk Light; 5-CCT Selectable 27K/3K/35K/4K/5K; Bronze Finish
Product Specification
Item #
62/1813

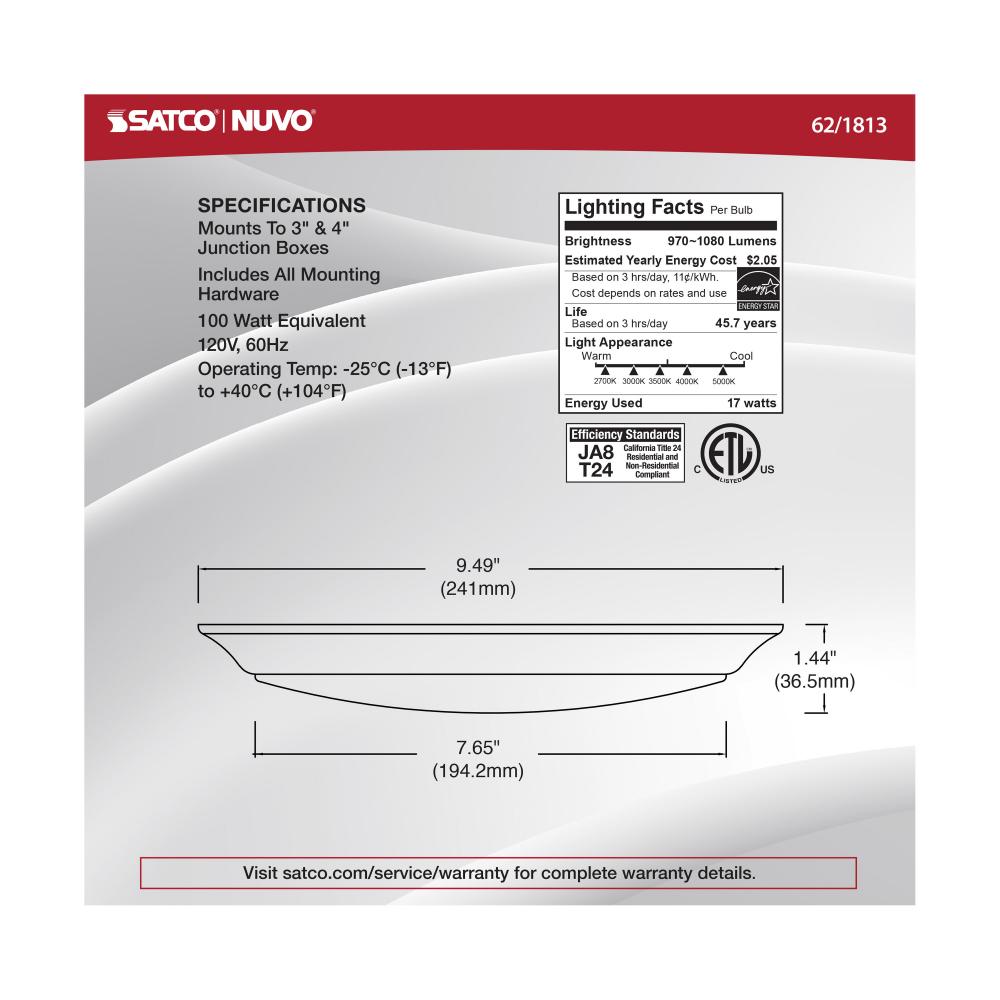

Dimensions
Height: 1.44"
Width: 9.49"
Additional product details
Vendor Item #
62/1813
Internal #
A68RE
Category
Flush Mounts
Subcategory
Other Flush Mounts
Option
Energy Star
, LED
, Prop 65
Voltage
100-120
Lumens
801-1100
Kelvin
4001-4500
Category
Close-to-Ceiling
Sub Category
LED Disk
Style
Contemporary
Bulb Volts1
120V
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Diameter
9.49
Dimmable
Yes-Dimmable
Each Height
9.84
Each Length
9.84
Each Width
1.69
Lumens
970L-1080L
Tariff Code
9405.11.8020
Warranty
5 Year Limited - Fixtures
Amps
0.142A
ANSI Base
Integrated
Beam Angle
110
CA Prop-65
Lead
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Connection
Hardwire
Country Of Origin
Malaysia
CRI
93
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase or Reverse Phase
Each Cube
0.09470000000000001
Each Quantity
1
Efficacy
57.06/60.29/63.53 lm/w
ES Category
Other
ES Unique ID
ESID-2507678
FCC Compliant
Yes
Feature 1
5 CCT Selectable
Feature 2
Dimmable
Feature 3
Wet Location Rated
Feature 4
93 CRI
Feature 5
Bronze
Feature 6
Mounts to 3 inch and 4 inch Junction Boxes
Feature 7
Dia: 9.49 inches x H: 1.44 inches
Feature 8
Dia: 9.49 inches x H: 1.44 inches
Finish Family
Bronze
Fixture shape
Round
Has Driver
No
Incandescent Equivalent
100W
Indoor Outdoor
Indoor
Installation Notes
Keyhole Slots
IOT Enabled
No
JA8 Compliant
Yes
Lens Finish
White
Lens Material
Acrylic
Long Description
Introducing SATCO|NUVO's 62-1813 LED CCT Selectable Disk Light with ColorQuick technology! This 10-inch, 17-watt disk light in bronze features a high CRI of 93, 2.5kV surge protection, and wet location rating. This CCT Selectable Disk Light is rated fo
Material
Steel
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temp
-25C (-13F) to +40C (+104F)
Pack Type
Color Box
Power Factor
0.9
Quantity In Pack
1
R9 Value
62
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Introducing SATCO|NUVO's LED CCT Selectable Disk Lights with ColorQuick technology! Available in 7-inch and 10-inch sizes, these disk lights are perfectly suited for various spaces making them ideal for Multi-Family and Residential locations. These dis
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
10" LED DISK LIGHT BRONZE FIN
Sloped Ceiling Compatible
Yes
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
Yes
Wattage Selectable
No
Weight Lb.
0.86
Manufactured By
Nuvo
Finish
