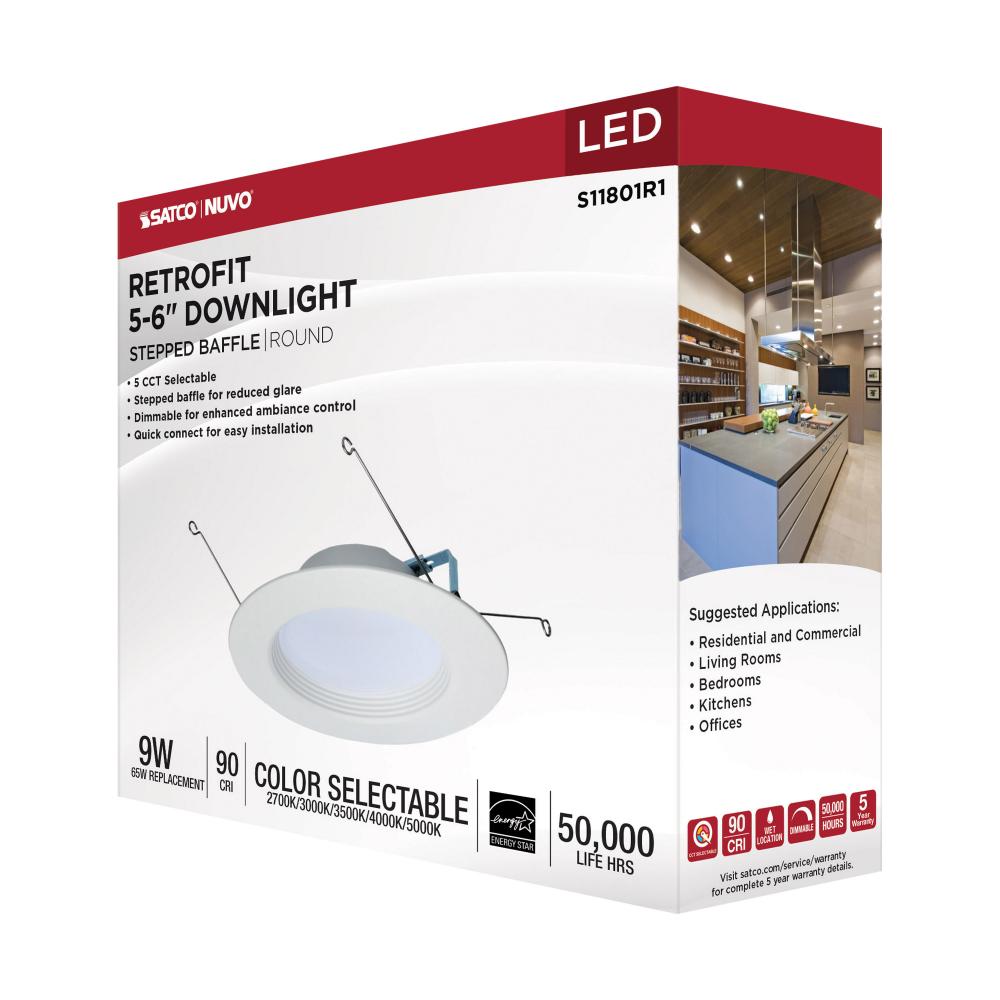

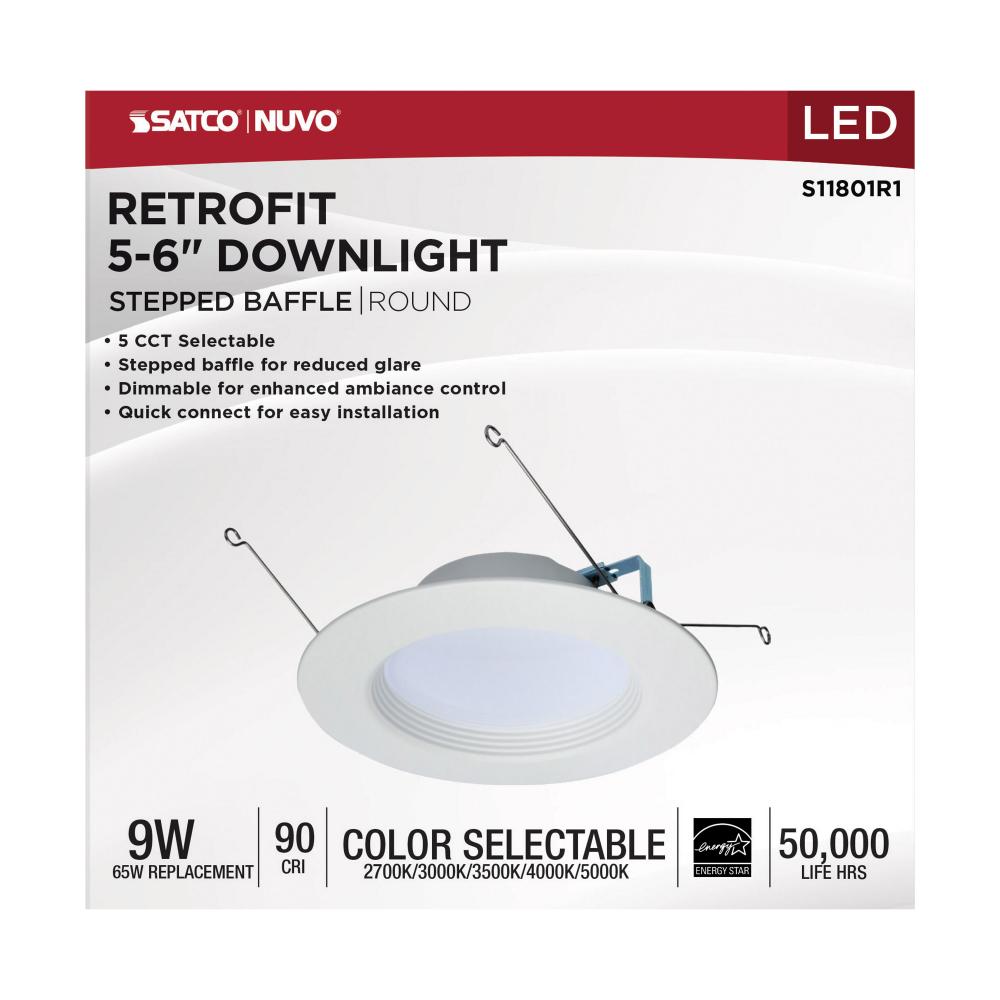

9 Watt LED Downlight Retrofit; 5-6 Inches; CCT Selectable; Round; White Finish; 120 Volt (S11801R1)
by Satco Products Inc.
9 Watt LED Downlight Retrofit; 5-6 Inches; CCT Selectable; Round; White Finish; 120 Volt

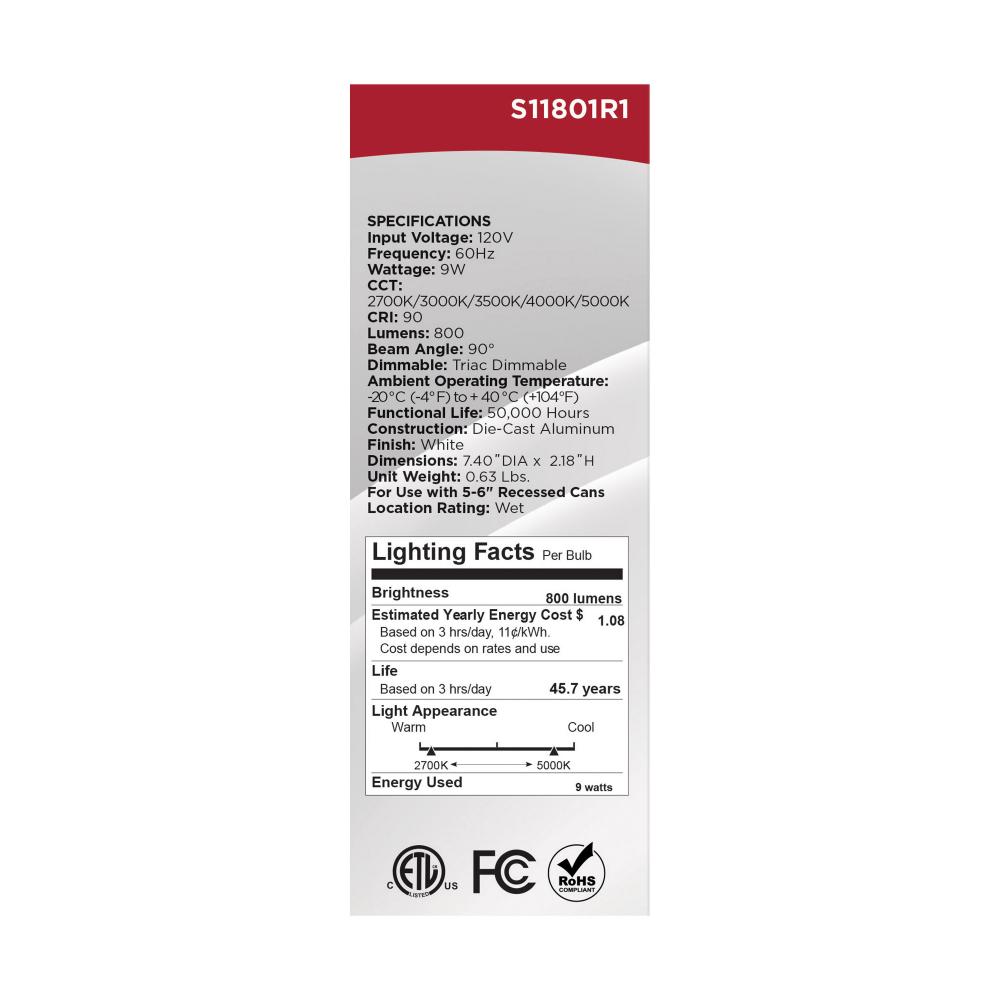

Product Specification
Item #
S11801R1
Dimensions
Height: 2.32"
Width: 7.40"
Additional product details
Vendor Item #
S11801R1
Internal #
40UTUPQ
Category
Recessed Ltg.
Subcategory
Recessed Lighting Trims
Finish
White
Option
Energy Star
, LED
, Prop 65
Category
Recessed
Sub Category
Retrofits
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White to Natural Light
Diameter
7.4
Dimmable
Yes-Dimmable
Each Height
8.460000000000001
Each Length
7.6
Each Width
2.36
Lumens
800L
Tariff Code
8539.52.0091
Warranty
5 Year Limited - Fixtures
Air Tight
No
Amps
0.075A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
Can Size
5-6 in.

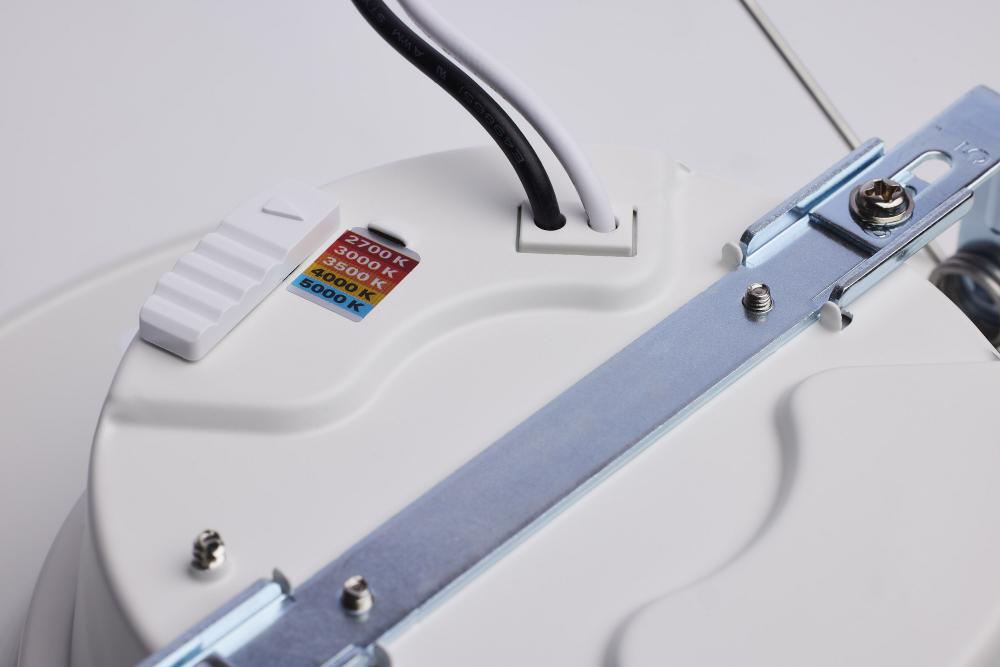

CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
5.36 in. Cutout
Connection
Connector or Adapter
Country Of Origin
China
CRI
90
Dimmable Down To
100 to 10 percent
Dimming Type
Triac
Each Cube
0.0878
Each Quantity
1
Efficacy
88.89 LPW
ES Category
Downlight Solid State Retrofit
ES Unique ID
ESID-2607555
FCC Compliant
Yes
Feature 1
5 CCT Selectable
Feature 10
ENERGY STAR Certified
Feature 2

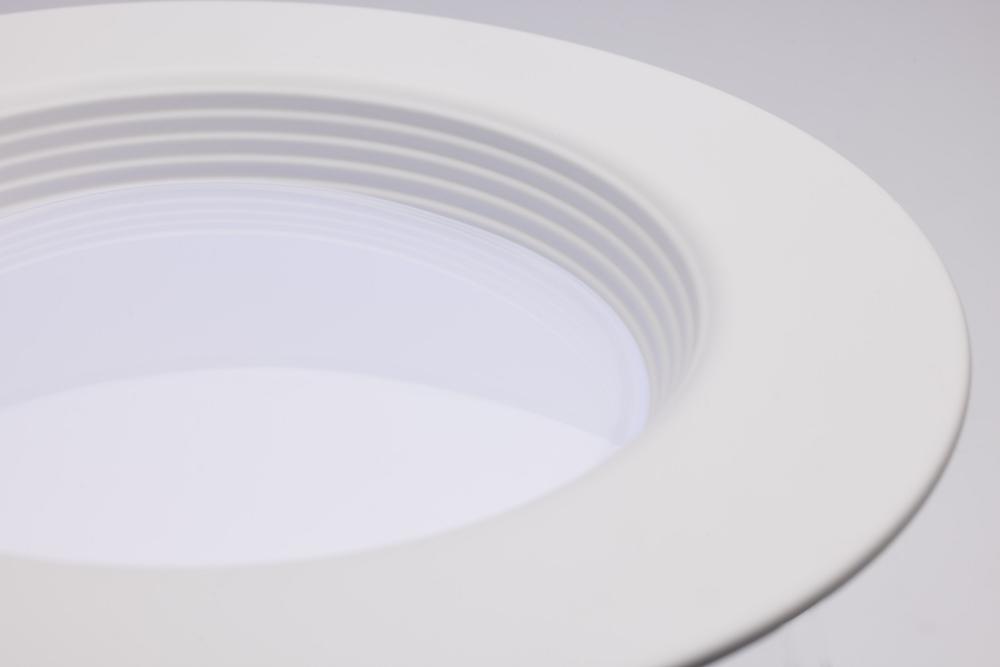

White Trim
Feature 3
90-Degree Beam Angle
Feature 4
E26 Adapter Included
Feature 5
90 CRI
Feature 6
Wet location rated
Feature 7
50,000 Hour Life
Feature 8
Dimmable Down to 10%
Feature 9
Suitable for Bathroom Applications
Finish Family
White

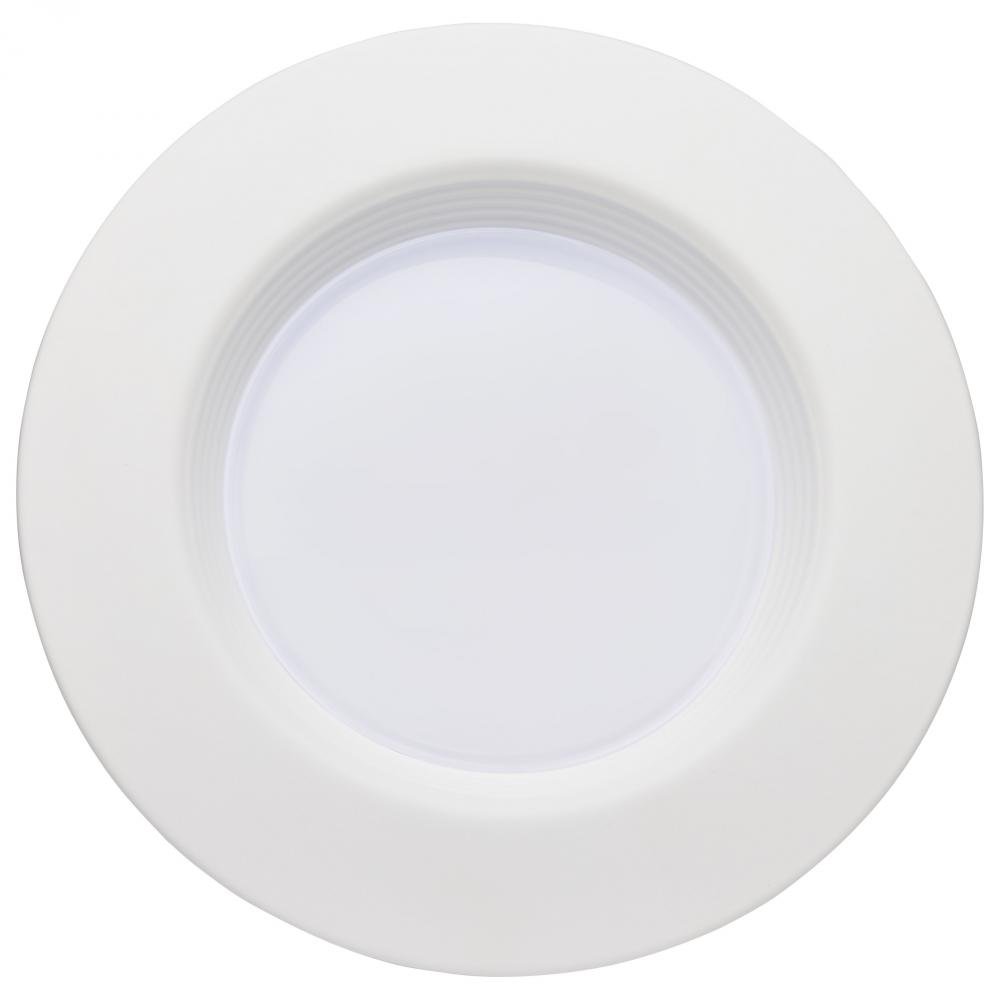

Fixture shape
Round
Incandescent Equivalent
65W
Includes

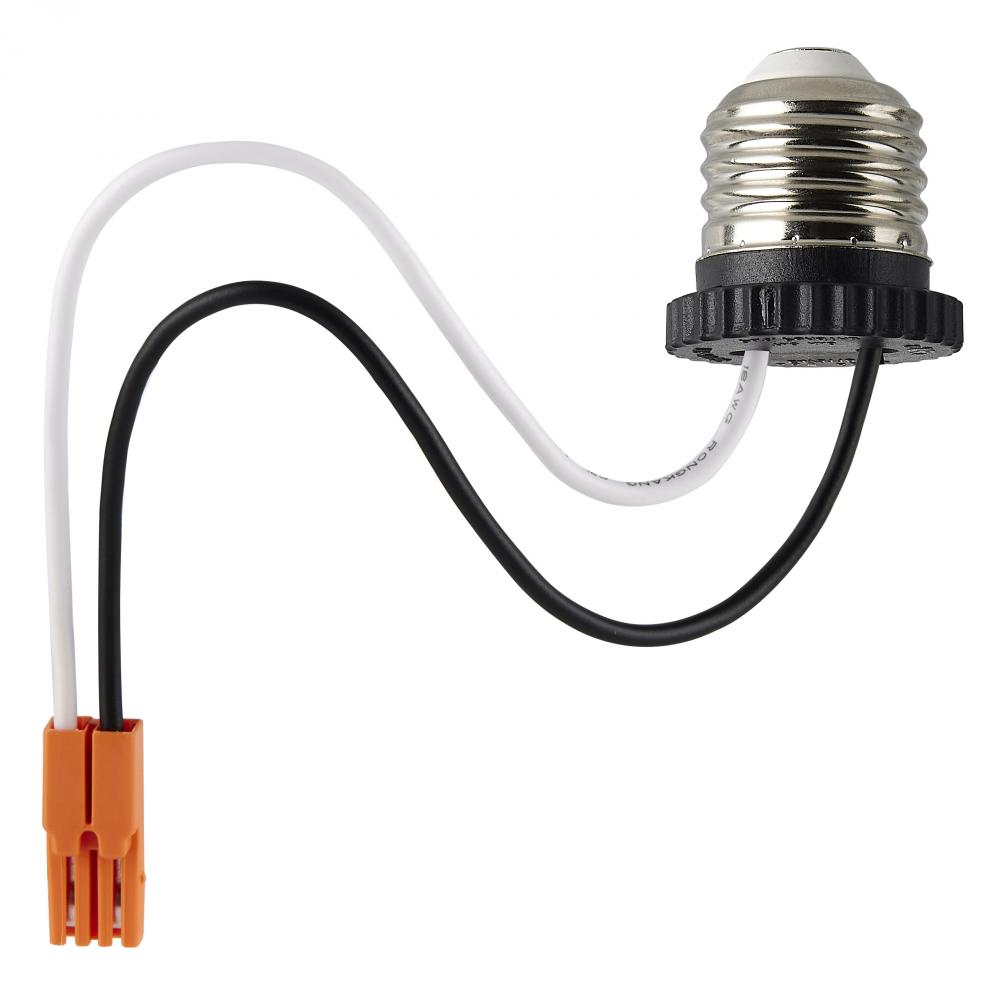

E26 Adapter included (S9001)
Indoor Outdoor
Indoor
Installation Notes
Can size minimum diameter: 5.36"; minimum height: 7.5"
IOT Enabled
No
JA8 Compliant
Yes
Lens Finish
Frost
Lens Material
Polycarbonate (PC)
Long Description

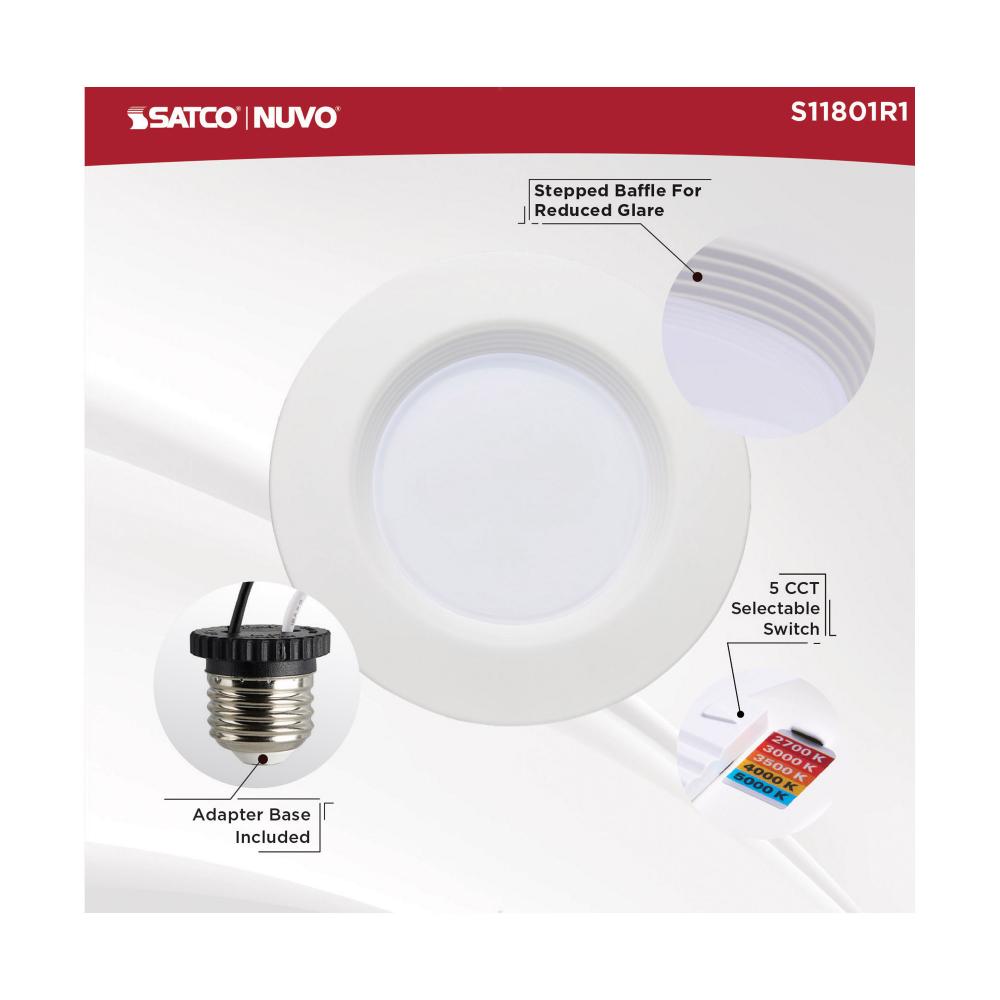

SATCO|NUVO's S11801R1 LED Retrofit Downlight is the easy way to convert traditional recessed lighting to LED. This 5/6-inch round fixture is sized for, and comes ready with, an E26 base adapter for instant illumination when installed with existing cans
Material
Steel

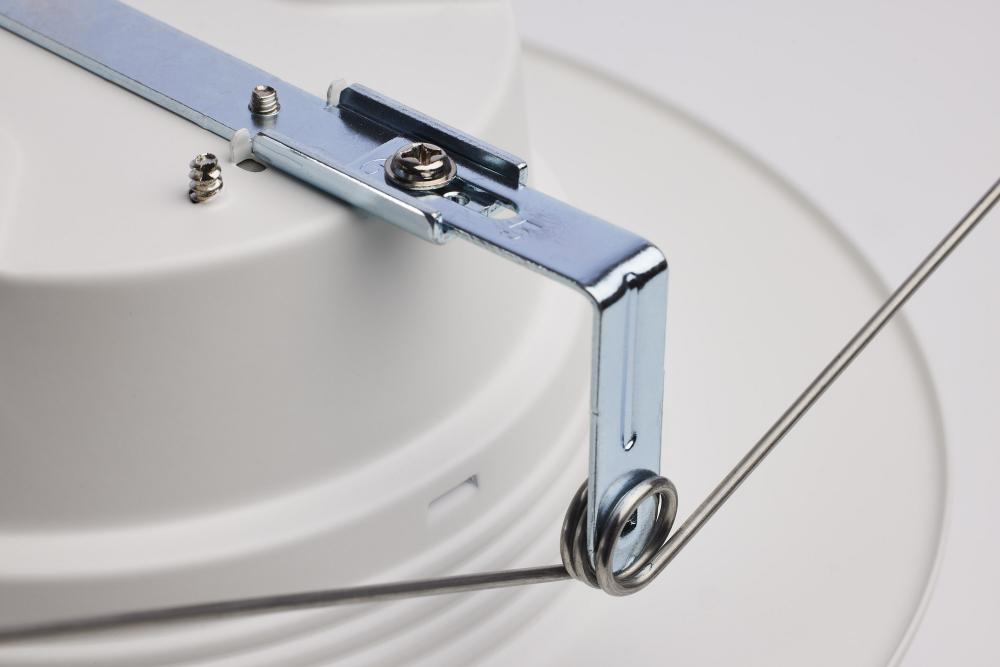

Mounting Procedure
Recessed Retrofit
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
R9 Value
51
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's LED Retrofit Downlights are the easy way to convert traditional recessed lighting to LED. Offered in 4-inch and 5/6-inch models, these fixtures are sized for, and come ready with, an E26 base adapter for instant illumination when installed
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
9WLED/RDL/5-6/5CCT-SEL/RD
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Yes
Title 24 Compliant
Yes
Trim Color
White
Wattage Selectable
No
Weight Lb.
0.63
Manufactured By
Satco Products Inc.
