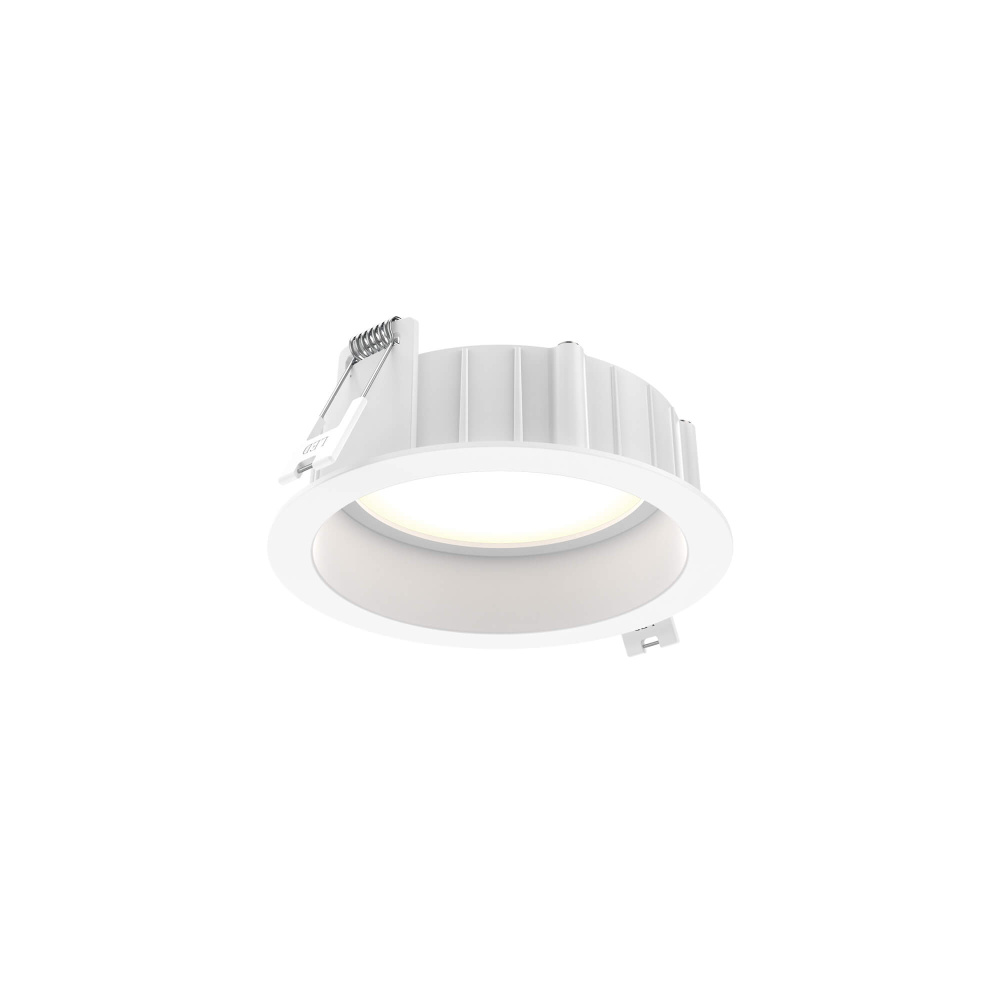

The Notch series of regressed downlights is characterized by a deep-set LED position which greatly reduces glare, neatly packaged in a price-conscious solution to general lighting.
Standard Information
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
Energy Star
Title 24
Outdoor
Wet Rated
Refinement Options
Category:
Recessed
Subcategory:
Regressed
Finish:
White
Option:
Energy Star
Outdoor
Title 24
Family:
Notch
Voltage:
120/277/347 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum
Ship Carton Height:
3.7
Ship Carton Length:
7.8
Ship Carton Width:
7.3
Warranty:
5 Years Limited
Weight:
1.5
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
102
Bulb CRI:
90
Country of Origin:
China
Delivered Lumens:
1000
Dimmer Type:
0-10 V Dimming
Energy Star:
Yes
IC Certification:
Yes
Indoor:
Yes
IP Rating:
IP44
Lens Material:
Acrylic
Location Rating:
Wet Rated
Max Wattage:
14 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Outdoor:
Yes
Safety Rating:
ETL Approved
Shipping Master Height:
16
Shipping Master Length:
23
Shipping Master Quantity:
24
Shipping Master Weight:
40
Shipping Master Width:
16
Title 24:
Yes
Wiring:
Hardwired
Edge lit technology
Frosted lens
Over 50,000 hours of service life
Smooth 360 degree wide spread
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
