6'' 5CCT 1" deep regressed panel 0-10V dimming (120-277-347V)

Image may not reflect selected features

6'' 5CCT 1" deep regressed panel 0-10V dimming (120-277-347V) (DRR6-CC-V-WH) by Dals

The Notch series of regressed downlights is characterized by a deep-set LED position which greatly reduces glare, neatly packaged in a price-conscious solution to general lighting.

Downloads

Click Here to View Installation Sheet

Click Here to View Catalog Sheet

Product Specification

Item #

DRR6-CC-V-WH

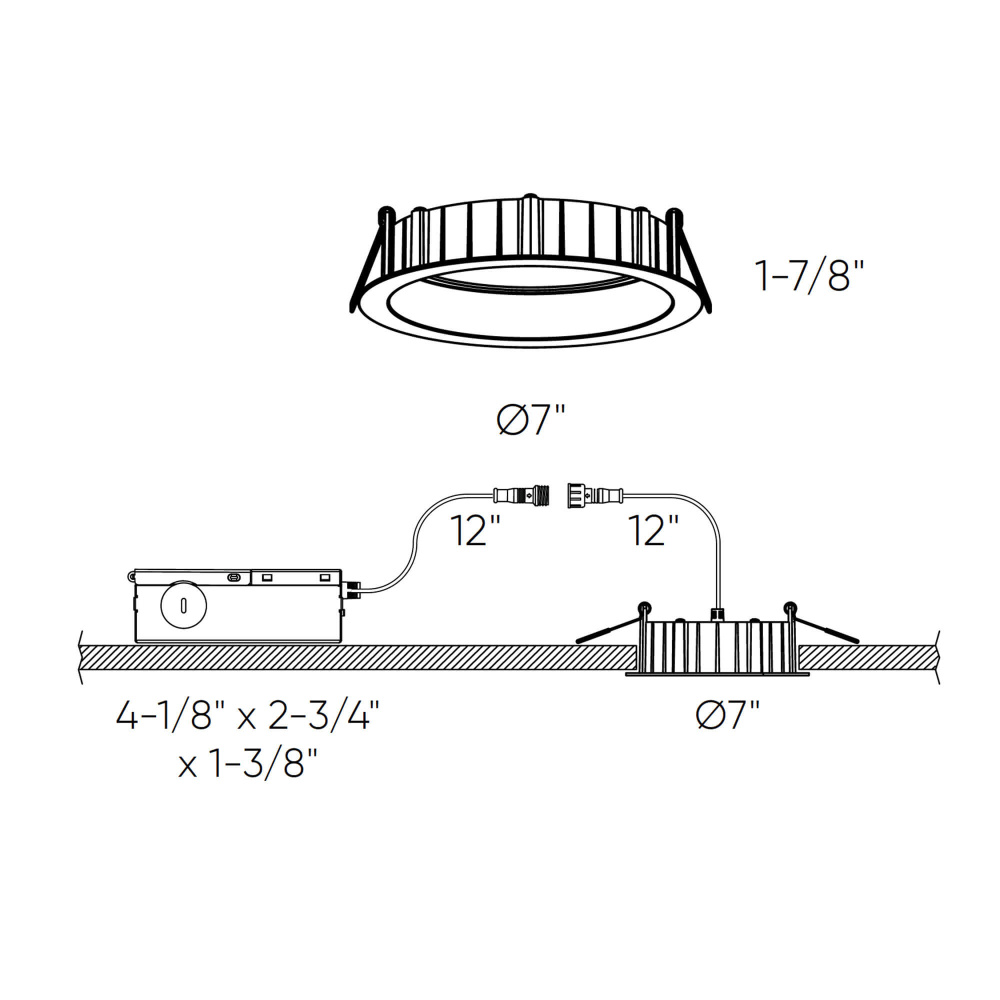

Dimensions

Height: 2.00"

Width: 7.00"

Length: 7.00"

Additional product details

Vendor Item #

DRR6-CC-V-WH

Internal #

6XZDK

Category

Recessed

Subcategory

Regressed

Finish

White

Family

Notch

Voltage

120-277 V

Number of Bulbs

1 Bulbs

Bulb Dimmable

Yes

Bulb Hours

50000

Kelvin

2700, 3000, 3500, 4000, 5000

Material

Aluminum

Ship Carton Height

3.7

Ship Carton Length

7.8

Ship Carton Width

7.3

Warranty

5 Years Limited

Weight

1.5

Air-Tight (ASTM E283--4)

Yes

Beam Angle

102°

Bulb CRI

Country of Origin

China

Delivered Lumens

1000

Dimmer Type

0-10V

Energy Star

Yes

IC Certification

Yes

Indoor

Yes

IP Rating

IP44

JA8

Yes

Lens Material

Acrylic

Location Rating

Wet Rated

Max Wattage

14 W

Maximum Working Temperature

40°C

Minimum Working Temperature

-20°C

Outdoor

Yes

Safety Rating

ETL Approved

Shipping Master Height

Shipping Master Length

Shipping Master Quantity

Shipping Master Weight

Shipping Master Width

Title 24

Yes

Wiring

Hardwired

Manufactured By

Dals

Other Details:

Edge lit technology
Frosted lens
Over 50,000 hours of service life
Smooth 360 degree wide spread
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
