Sculpt 60" LED Smart Fan
Image may not reflect selected features
/vendors/757/large/903660fbb-ldd_sculpt.jpg
additional image
additional image
additional image
additional image
additional image
additional image
additional image

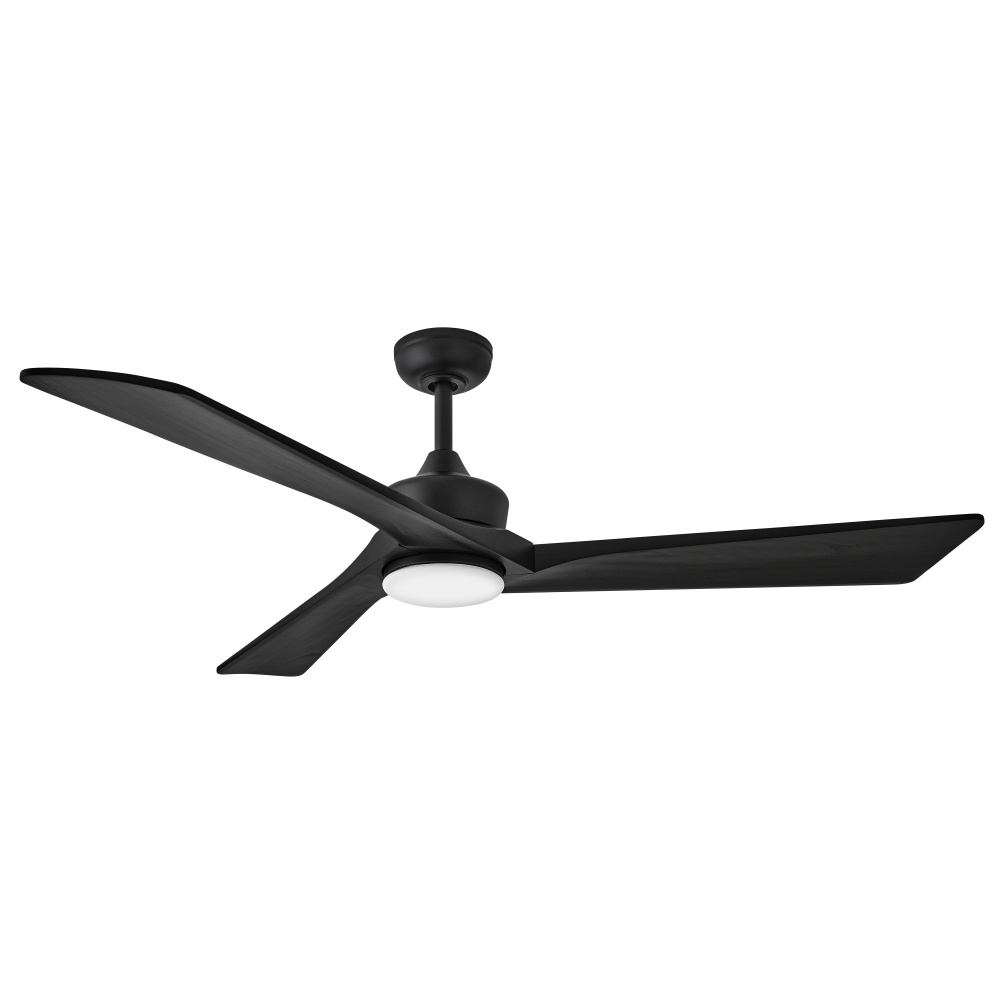

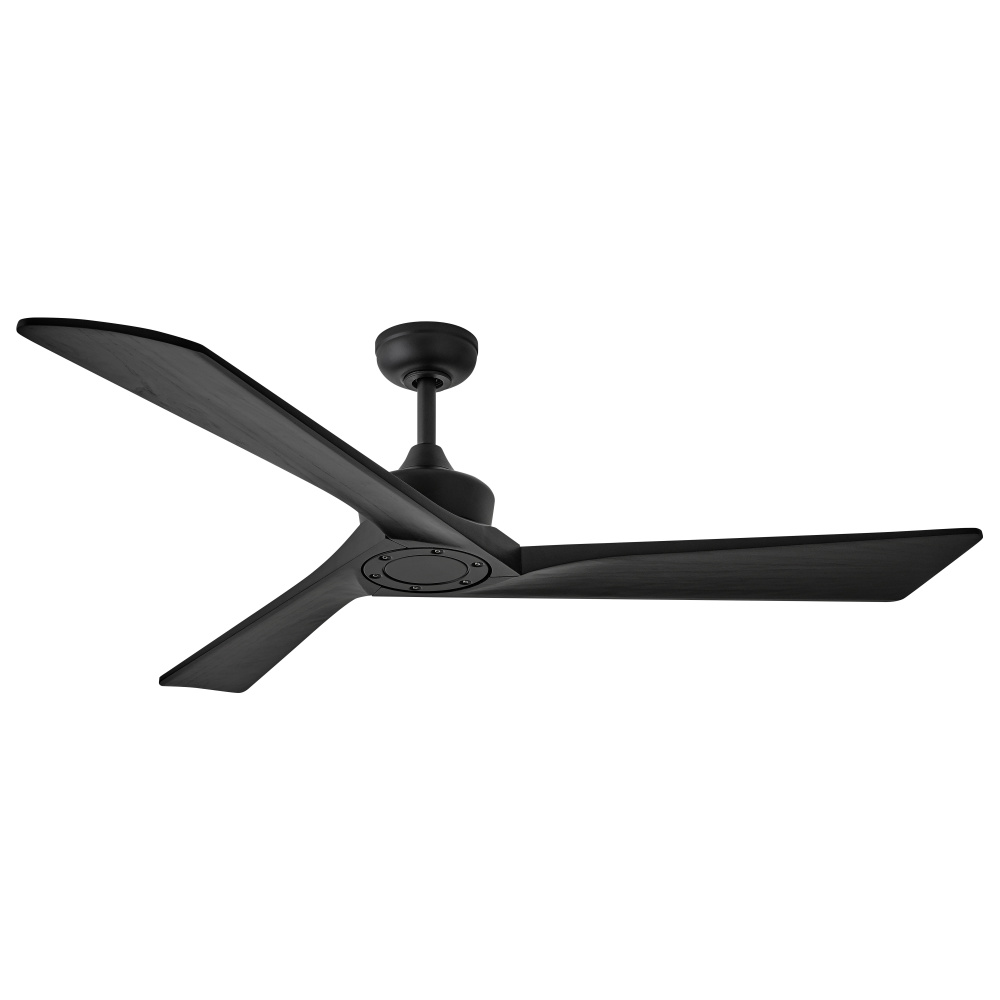

Sculpt 60" LED Smart Fan (903660FBB-LDD) by Hinkley Canada
Sculpt defines modern elegance, featuring solid wood complemented by clean etched opal glass, seamlessly adding contemporary character to any setting. Available in a variety of finish and blade combinations. Damp rated for both interior and covered outdoor spaces. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
Downloads
Product Specification
Item #
903660FBB-LDD

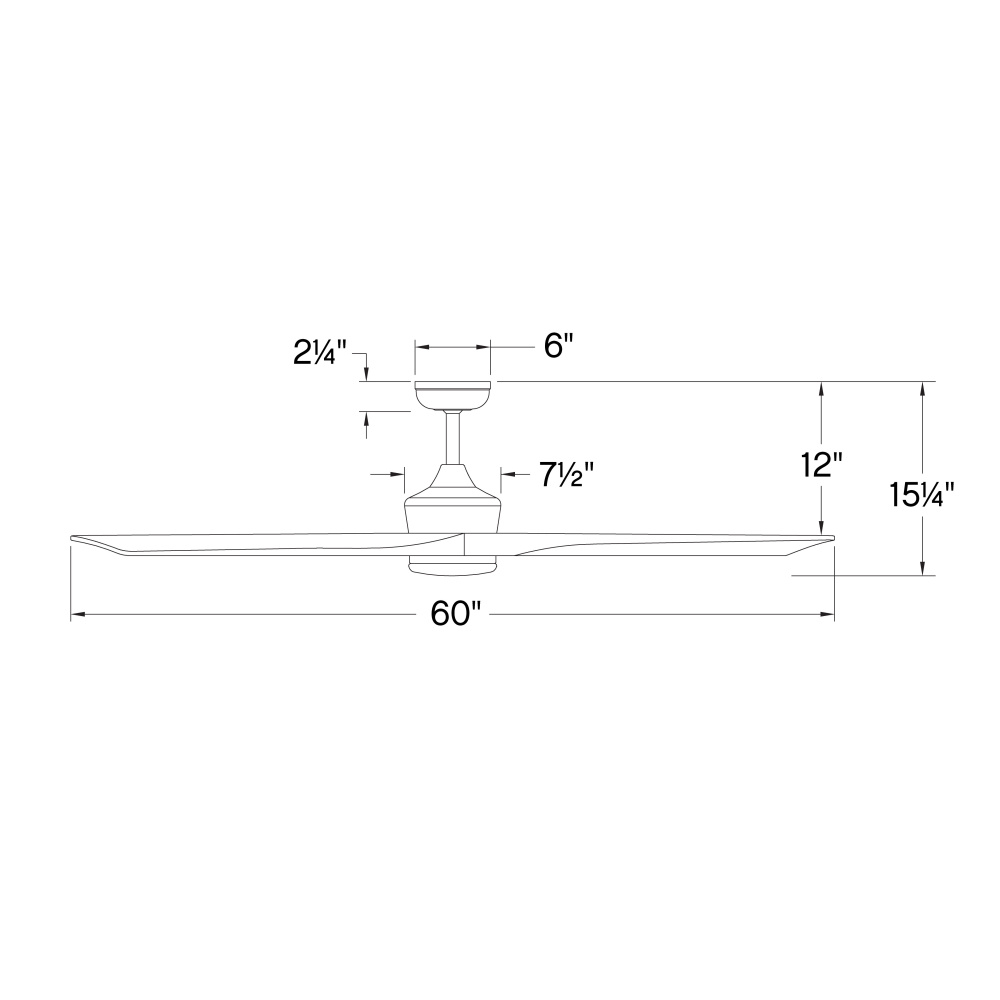

Dimensions
Height: 15.25"
Width: 60.00"
Length: 60.00"
Additional product details
Vendor Item #
903660FBB-LDD
Internal #
HFNGH
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Style
Modern
Option
Damp Rated
Category
Fan
Finish
Matte Black
Style
Modern
Family
Sculpt
Glass
Etched Opal
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
7344
Amperage
0.48
Blade Finish
Matte Black
Blade Pitch
9

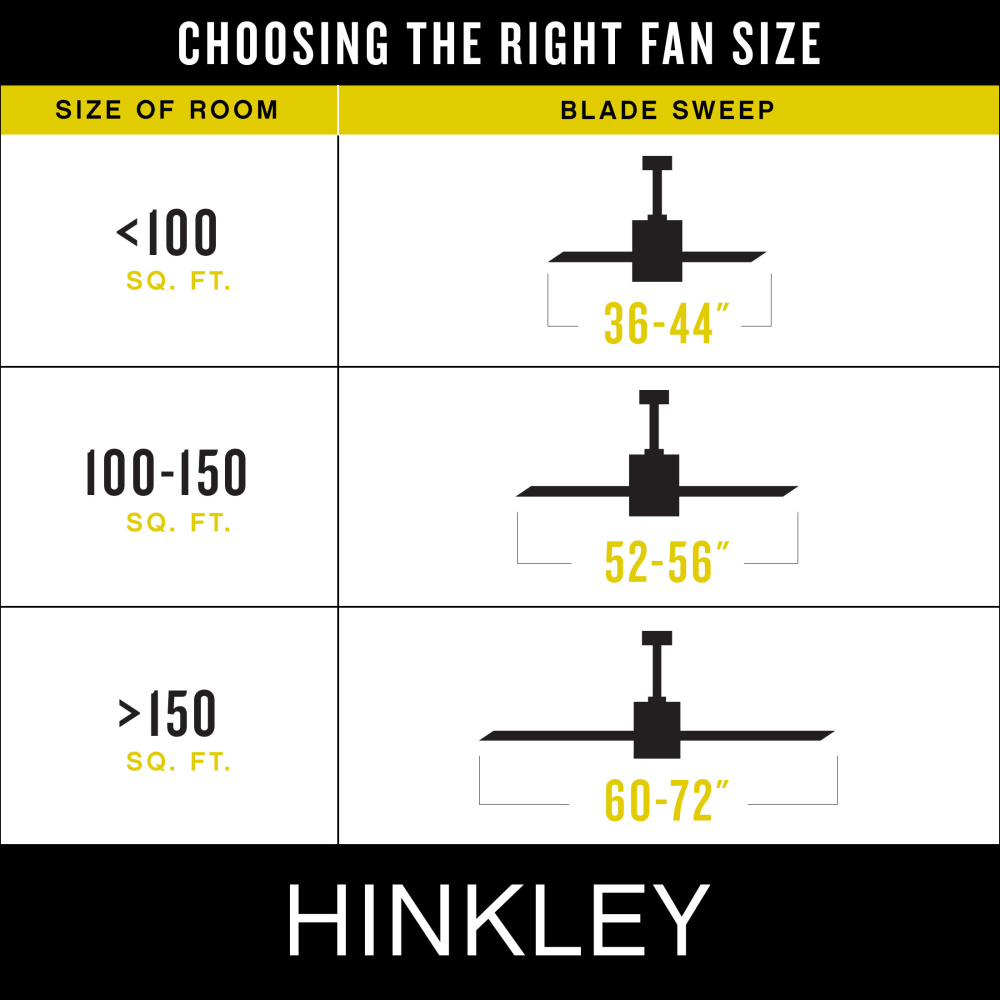

Blade Span
60
Blades Included
Yes
Bulb Dimmable
Yes - CL Type Dimmer (SSL7A)
Bulb Hours
50000
Bulb Type
LED
Canopy
6 Dia. x 2.25 D
Introduction Date
01/01/2024
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Steel
Motor Size
DCS-30NS
Motor Type
DC
Ship Carton Height
11.42
Ship Carton Length
46
Ship Carton Width
16.4
Ship Weight
24.43
Vendor Ship Method
Parcel
Weight
14.75
Airflow Avg
4956
AMPS Avg
0.27
Avg Energy Use
22
Blade Material
Wood
Blade Options Available
No
Blade To Ceiling Height
12
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type

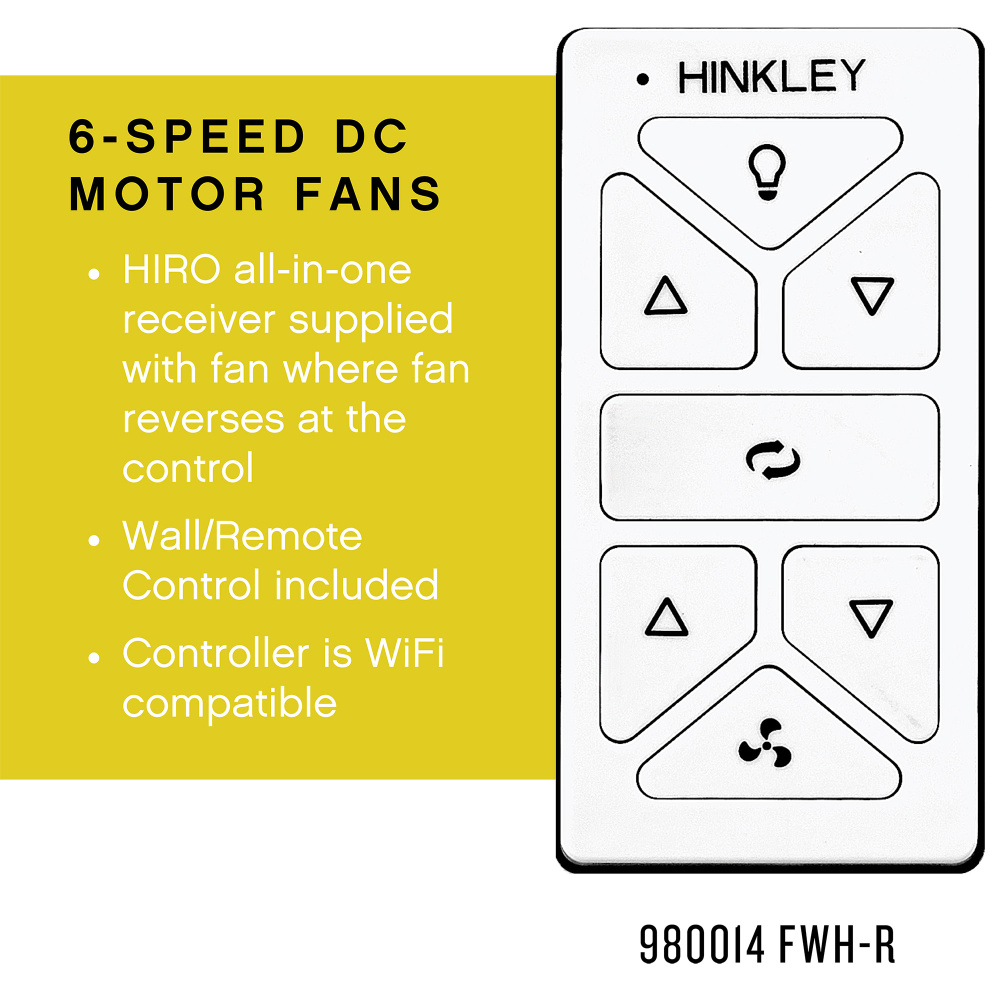

HIRO Control - 6 Speed Reversing
Country of Origin
Taiwan
Dual Mount
No
Efficiency Avg
223
Efficiency High
211
Energy Cost Avg
6
Energy Cost High
9.74
Energy Use High
34.7
Fan Control
Yes
Flush Mount Fan
No
Incandescent Equivalency
100 W
Light Kit Adaptable
No
Light Source
Integrated LED
Location Rating
Damp Rated
Max Wattage
16 W
Motor Fan Speed
6
Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
122
RPMS High
185
Safety Rating
UL Approved, C-US Approved
Single Power Switch
No
Slope
20
Sloped Ceiling Adaptable
Yes
Stand By Power
0.92
Title 24
No
WIFI Control Included
Yes
WIFI Control Optional
No
Manufactured By
Hinkley Canada


Other Details:
  • Blades, controls, switches, capacitors and hardware carry a 1-year warranty
  • Bold silhouette with dramatic details creates a modern statement
  • Fan Control included, HIRO Control - 6 Speed Reversing
  • Fans should be installed at a minimum of 7 feet from the floor
  • For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
  • LED components carry a 5-year limited warranty
  • Motor carries a lifetime warranty
  • Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
  • This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
  • This item includes a light kit cover
  • This item may be hung on a sloped ceiling
  • This product uses recyclable or limited packaging materials to help reduce waste.
  • WiFi compatible with included fan control
Finish
Additional options that would change other selections
Blade Finish
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
953
00
/ / 1
($953.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 130 items available.
